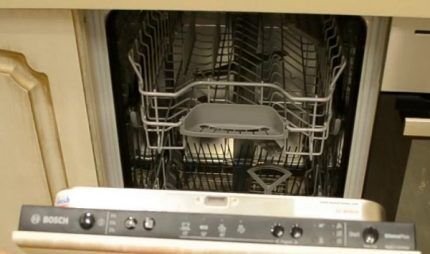

Bosch Dishwasher Heating Element Repair Guide

How the Bosch Heating System Works

Unlike older dishwashers, many Bosch dishwashers use an integrated heating system, often built into the circulation pump (known as a heat pump or thermistor-controlled system).

This means:

• The heating element may not be a standalone coil
• Temperature is controlled electronically
• Sensors regulate drying efficiency
• Error codes often point to system-wide issues, not just the heater

👉 This is why diagnosis matters more than replacement.

Read More: Bosch Dishwasher Gasket Replacement Guide

Bosch Dishwasher Heating Element Replacement Symptoms

Clear failure signs

Symptom	What It Indicates
Cold dishes after the full cycle	Heating element not activating
Water remains lukewarm	Partial heater failure
Excess condensation	Drying system failure
The cycle never completes	Thermistor or heater fault
Burning smell	Electrical overheating

Bosch-specific error codes

Error Code	Meaning
E09	Heating circuit failure (common)
E11	Temperature sensor issue
E15	Water leakage affecting the heating system
E01–E05	Control module or relay faults

Bosch Dishwasher Heating Element Replacement Causes

Root Cause	Explanation	Severity
Limescale buildup	Hard water insulates the heater	High
Pump-integrated failure	The heater inside the circulation pump fails	Very High
Faulty thermistor	Misreads water temperature	Medium
Relay board failure	No power sent to the heater	High
Wiring corrosion	Moisture damage over time	Medium

Bosch Dishwasher Heating Element Replacement Cost Breakdown

Category	DIY Cost	Professional Cost
Heating element	$40–$150	Included
Pump assembly (if integrated)	$120–$300	Included
Labor	Free	$120–$300
Diagnostic fee	$0	$80–$150
Total average	$50–$150	$200–$450

👉 In some Bosch models, replacing the entire pump is more practical than replacing just the heater.

Tools Needed (Expanded List)

• Torx T20 / T15 screwdriver set
• Nut driver set
• Multimeter (continuity & resistance test)
• Towels + shallow tray
• Flashlight or inspection lamp
• Replacement OEM part (Bosch-specific model match)
• Gloves (sharp metal edges inside base)

Bosch Dishwasher Heating Element Replacement Step-by-Step (Advanced)

Step 1: Shut Off Power & Water

• Turn off the breaker
• Close the water inlet valve
• Disconnect the drain hose if needed

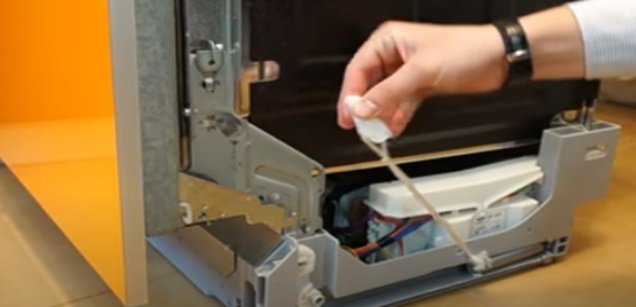

Step 2: Pull Out Dishwasher (if required)

• Some Bosch models require sliding the unit out
• Protect flooring

Step 3: Access Base Plate

• Remove the kick panel
• Unscrew the bottom insulation shield
• Inspect for water leaks first

Step 4: Identify Heating System Type

You’ll see one of two setups:

• Standalone heating element
• Integrated heater in the circulation pump

👉 This determines repair complexity.

Step 5: Disconnect Electrical Connectors

• Label wires or take photos
• Disconnect carefully (fragile clips)

Step 6: Remove Heating Component

• Unscrew mounting brackets
• Release locking tabs
• Pull out the pump/heater assembly if integrated

Step 7: Install Replacement Part

• Align seals properly
• Ensure the gasket is seated correctly
• Tighten evenly (avoid cracking housing)

Step 8: Reassembly & Leak Test

• Restore the base plate
• Turn the water on
• Run rinse cycle first (no detergent)
• Check for leaks under the unit

Bosch Dishwasher Heating Element Replacement vs Repair Decision

Option	When to Choose	Risk Level
Replace the heater only	Standalone element failure	Low
Replace the pump assembly	Integrated heater failure	Medium
Repair wiring/relay	Electrical fault only	Medium
Replace dishwasher	Multiple system failures	High upfront cost

DIY vs Professional Repair

DIY is suitable if:

• You can safely access the base panel
• You own a multimeter
• The model has a standalone heater

Call a technician if:

• Water leakage present
• Error E15 appears
• The heater is integrated in pump system
• Control board suspected

Compatibility Checklist

Before ordering parts:

• Match the full model number (SHX / SHP / SHE series)
• Verify serial number range
• Confirm OEM part number
• Check voltage (120V vs 240V systems)
• Ensure the connector shape matches

Common Mistakes to Avoid

• Buying non-OEM heating elements
• Ignoring leak damage before replacement
• Not testing the thermistor before replacing the heater
• Over-tightening the plastic pump housing
• Skipping continuity testing

Maintenance Tips (Prevention)

• Run a monthly hot water cycle
• Use dishwasher cleaner to reduce scale
• Install a water softener if hard water is present
• Clean filter weekly
• Avoid overloading racks (affects circulation heating)

FAQs

1. What does the Bosch dishwasher heating element do?

The heating element in a Bosch dishwasher heats water for washing and activates drying cycles to remove moisture from dishes.

2. How do I know if my Bosch dishwasher heating element is bad?

Common signs include cold dishes after a full cycle, poor drying, cloudy glassware, and error codes like E09 or E11.

3. What is the most common Bosch heating element error code?

Error E09 is the most common and usually indicates a heating circuit or integrated heater failure.

4. Can I run a Bosch dishwasher if the heating element is broken?

Yes, but it is not recommended. The dishwasher may still clean, but sanitization and drying performance will be poor.

5. How much does a Bosch dishwasher heating element replacement cost?

DIY replacement typically costs $40–$150 for parts, while professional repair can range from $200–$450, depending on the model and labor.

Final Verdict

Bosch dishwasher heating element replacement is often effective, but many failures involve integrated pump systems or sensors—not just the heater. Proper diagnosis saves time and prevents unnecessary part replacement.
